Product Overview: PV Combiner Box

Our PV Combiner Boxes are designed to combine the output of multiple solar PV strings into a single DC output, providing essential protection, monitoring, and disconnection functions. Built with durability and long-term outdoor performance in mind, they are ideal for commercial, industrial, and utility-scale solar installations.

Key Features & Advantages:

• Robust & Durable Construction:

  • High-Quality Materials: Fabricated from premium galvanized steel, aluminum alloy, or stainless steel (upon request) for superior corrosion resistance and mechanical strength.

  • Weatherproof & IP Rated: Designed to withstand harsh environmental conditions (UV exposure, rain, dust, and extreme temperatures). Standard IP65 rating ensures complete protection against dust and water jets.

  • Precision Fabrication: Utilizing our in-house laser cutting, CNC punching, and CNC bending equipment, we guarantee perfect dimensional accuracy, smooth edges, and a seamless fit for all components.

• Enhanced Safety & Protection:

  • Integrated DC Protection: Configurable with DC fuse holders, surge protection devices (SPD), and isolator switches to safeguard against overcurrent, lightning strikes, and overloads.

  • Safe & Organized Wiring: Spacious interior layout with dedicated cable glands, DIN rails, and terminal blocks for neat, secure, and easy wiring, reducing installation time and risk.

  • Reliable Grounding: Ensures proper system grounding for enhanced safety.

• Functional Design & Customization:

  • Modular & Scalable: Flexible design to accommodate various numbers of input strings (e.g., 4-in-1, 8-in-1, 16-in-1, 24-in-1) and component configurations.

  • Monitoring Ready: Optional integration points for current monitoring sensors (with meter) and voltage monitoring to facilitate system performance tracking.

  • Full Customization: We offer OEM/ODM services. Customize size, material, color (powder coating), IP rating, window cut-outs, logos, and internal electrical components to meet your specific project requirements.

• Manufacturing Excellence by Ironhorse:

  • Vertical Integration: From sheet metal to final assembly, we control the entire production process using our electric welding, riveting, and pneumatic presses, ensuring consistent quality and faster turnaround.

  • Complete Solutions: As a specialist in new energy equipment, we understand the technical demands and can provide value-added assembly services.

Technical Specifications (Standard):

• Enclosure Material: Galvanized Steel / Aluminum Alloy

• Protection Rating: IP65 (Higher ratings available)

• Surface Treatment: Phosphating, Powder Coating (Standard RAL Colors)

• Input Channels: 4 to 24 Strings (Customizable)

• Max. System Voltage: 1000VDC / 1500VDC

• Standards Compliance: Designed to meet IEC, UL, and relevant international safety standards.

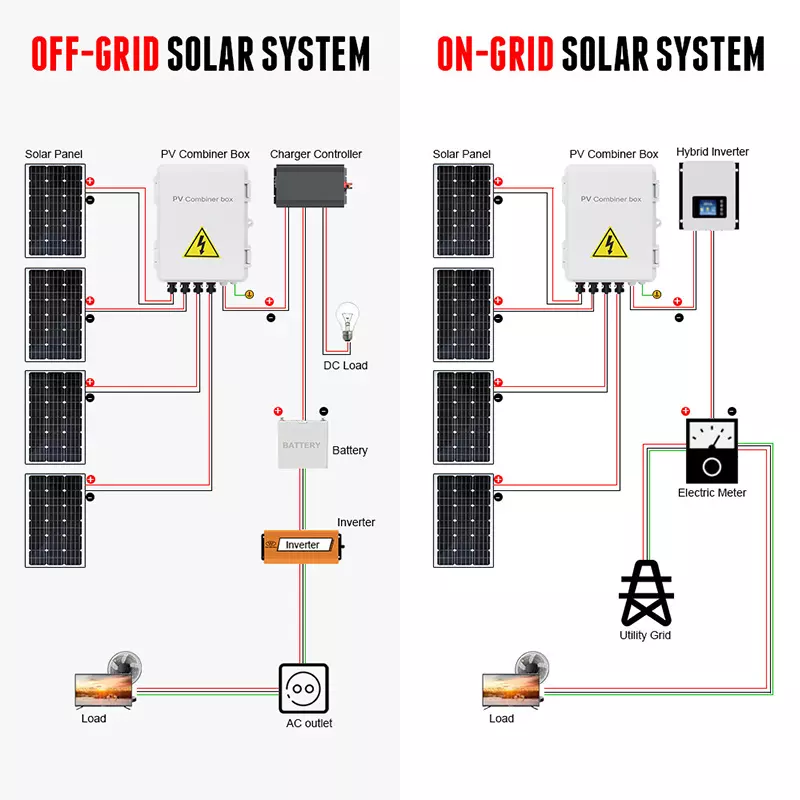

Applications:

• Rooftop Solar Power Stations

• Ground-mounted Solar Farms

• Commercial & Industrial PV Systems

• Solar Carports & BIPV Projects

Why Choose Ironhorse for Your PV Combiner Box?

1. Precision Engineering: Leveraging our advanced sheet metal and stamping capabilities for flawless enclosures.

2. Focus on Safety: Products built with electrical protection and operator safety as the top priority.

3. Flexible Customization: Tailored solutions, not just standard products.

4. End-to-End Quality Control: Rigorous testing throughout our integrated manufacturing process.

5. Competitive Pricing & Reliable Delivery: Efficient production and direct factory pricing.
